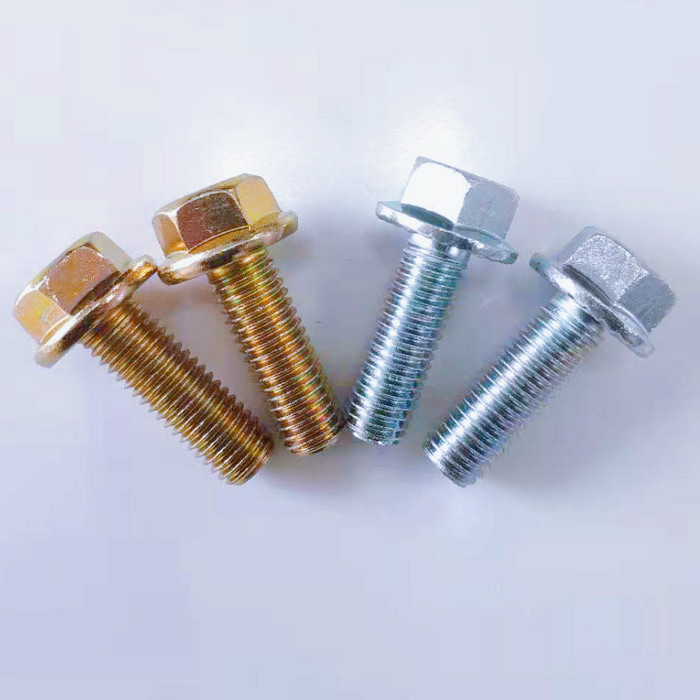

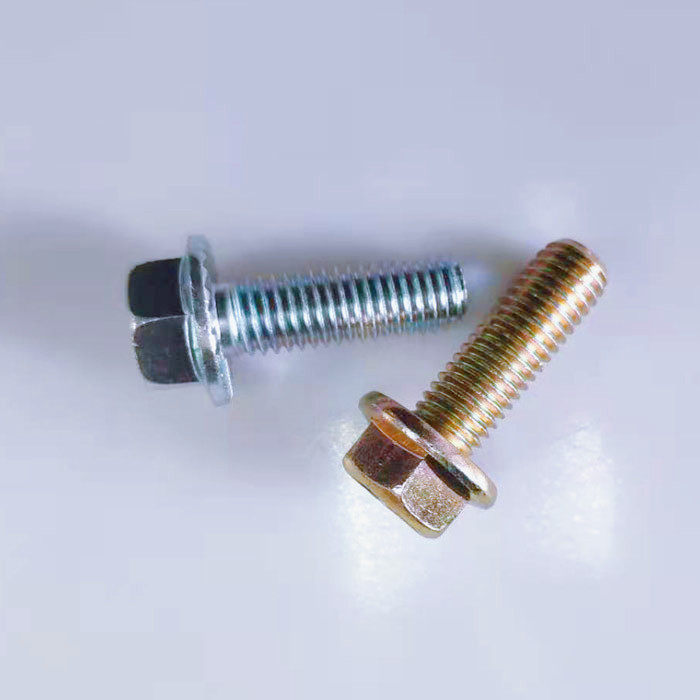

High-Carbon Steel Flanged Hex Head Screws/Bolts- Grade 8
High-Carbon Steel Flanged Hex Head Screws/Bolts made from Grade 8 steel, these screws can be used in high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws.
High-Carbon Steel Flanged Hex Head Screws/Bolts- Grade 8 |
|

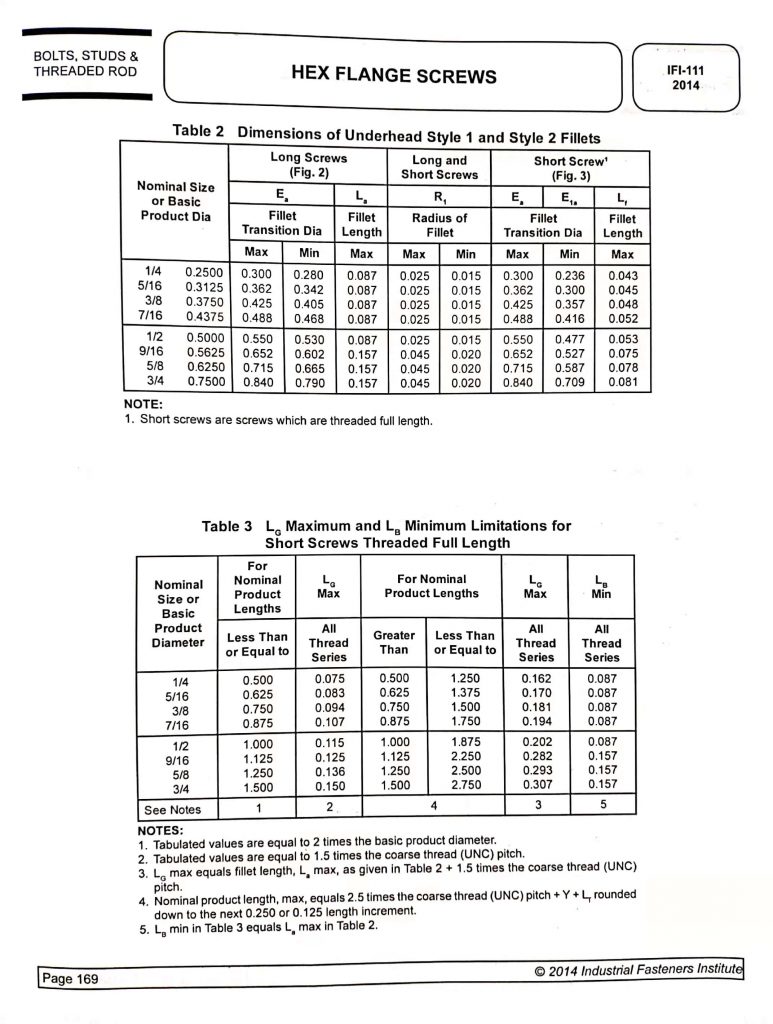

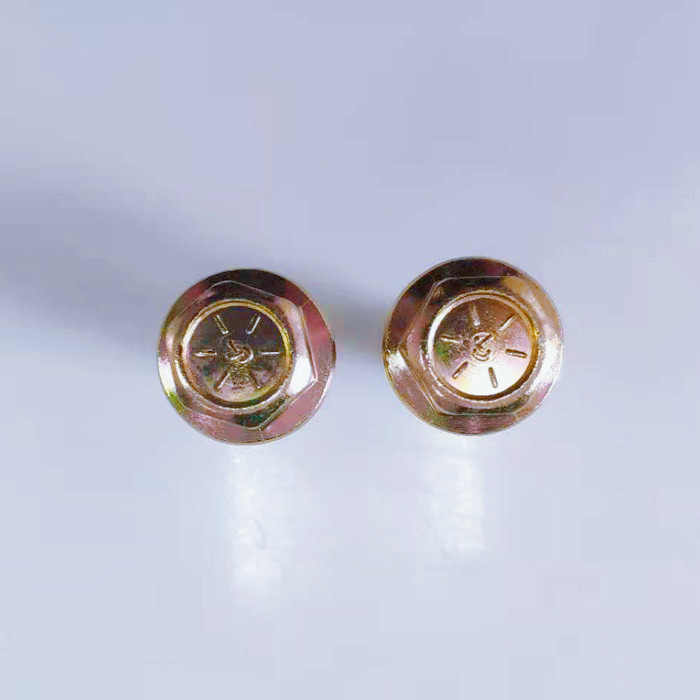

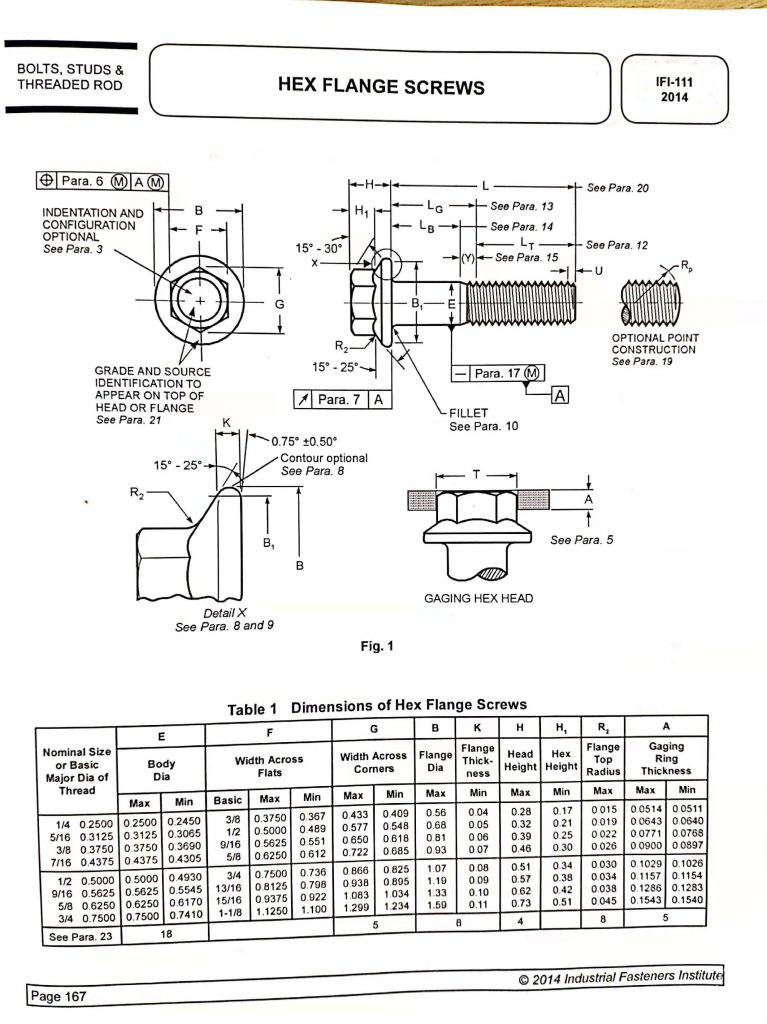

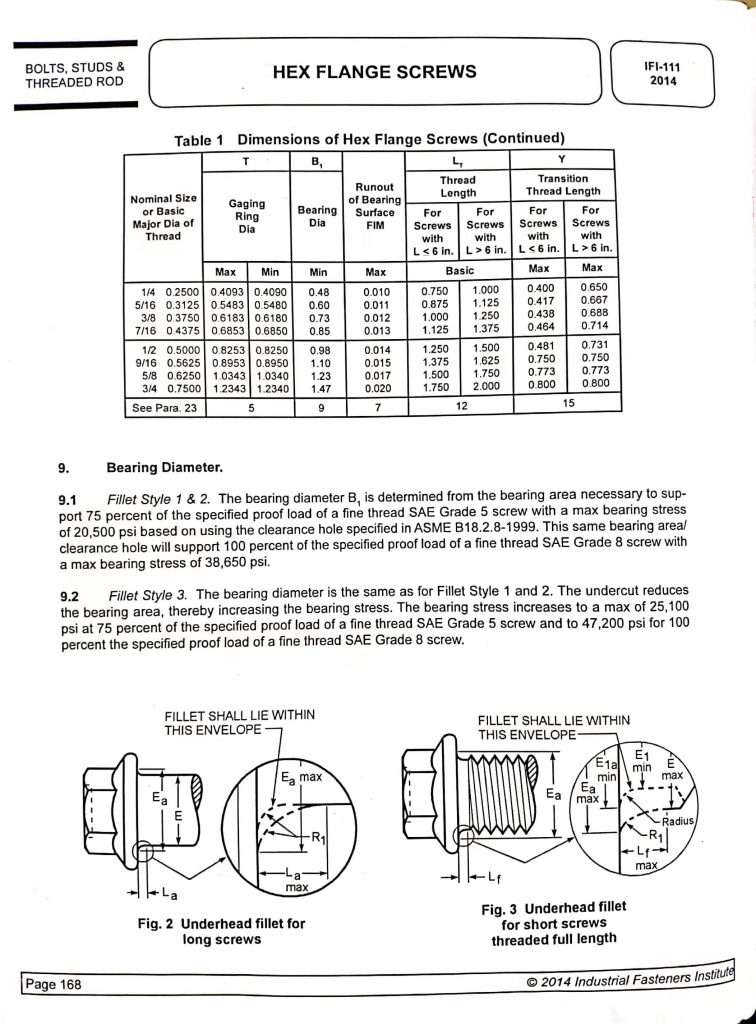

| Standard: | Hex Head Screws/Bolts material meets SAE J429 specifications for quality. Dimensions meet IFI 111 specifications. Grade 8 steel hex head screws are marked with six radial lines. Head height includes the flange. |
| Size: | 1/4″ – 3″ |
| Material: | Carbon Steel
Grade 8: 40Cr, 42CrMo…… |
| Grade: | Grade 8 |
| Thread: | UNC, UNF, Coarse threads are the industry standard; choose these Hex Head Screws/Bolts if you don’t know the threads per inch. Fine threads are closely spaced to prevent loosening from vibration. |
| Thread Length: | Partially Thread, Fully Thread |
| Finish: | Plain, Zinc Plated (Clear/Blue/Yellow/Black), Black Oxide, Nickel, Hot Dip Galvanized, |
| Zinc-plated steel Hex Head Screws/Bolts resist corrosion in wet environments. Hot-dipped galvanized steel Hex Head Screws/Bolts are 10 times more corrosion resistant than zinc-plated Hex Head Screws/Bolts. They have a thicker coating than other finishes; to ensure compatibility, use these Hex Head Screws/Bolts with hot-dipped galvanized steel nuts. | |

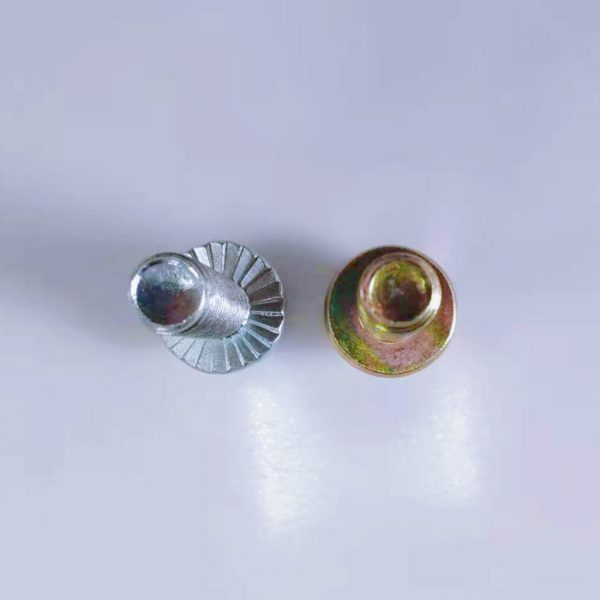

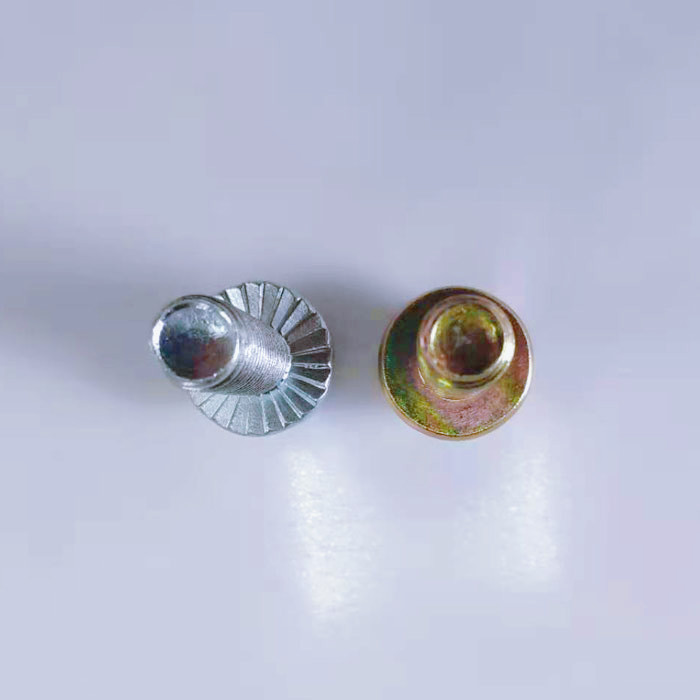

High-Carbon Steel Flanged Hex Head Screws/Bolts made from Grade 8 steel, these screws can be used in high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws. Flanged Hex Head Screws/Bolts washer has serrated and non-serrated, so the flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer.
| Package: | 1. Bulk in 25Kgs Carton Box, + 48 CTN wooden solid Pallet |
| 2. Bulk in 25Kgs Carton Box, + 36 CTN wooden solid Pallet | |
| 3. According to customers demand ( Customized Label & Carton Box ) |
