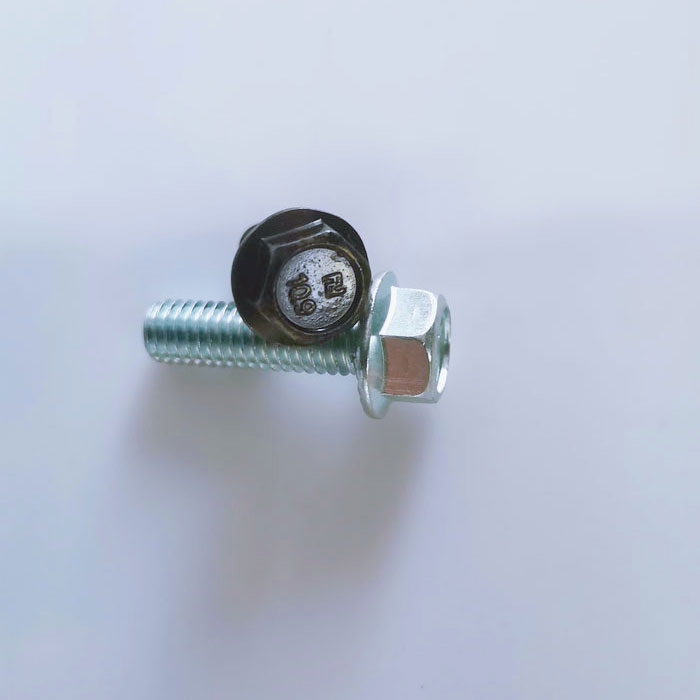

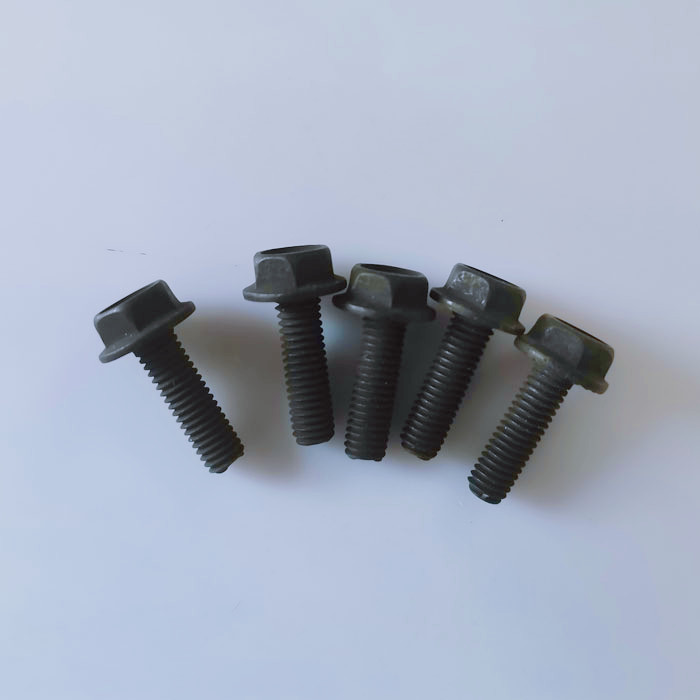

High- Steel Flanged Hex Head Screws/Bolts Metric Class 10.9
Flanged Hex Head Screws/Bolts Metric Class 10.9 for high-stress applications, such as valves, pumps, motors, and automotive suspension systems. Flanged Hex Head Screws/Bolts Metric Class 10.9 are at least 25% stronger than medium-strength steel screws.
Flanged Hex Head Screws/Bolts Metric Class 10.9 |
|

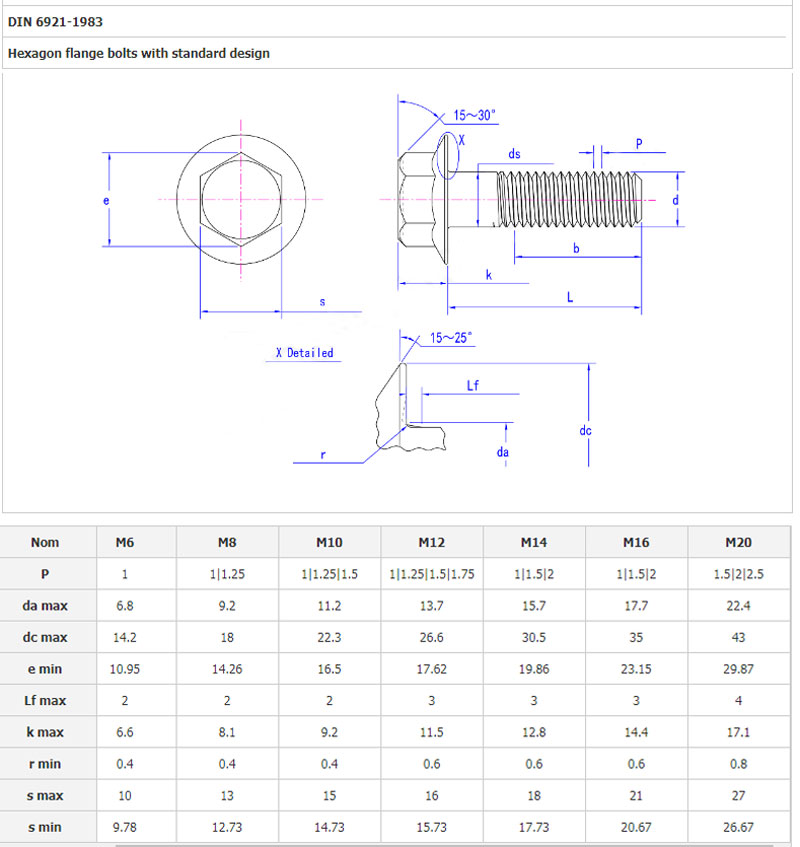

| Standard: | Flanged Hex Head Screws/Bolts meet ISO 898-1 or SAE J1199 comply with specifications and testing requirements for material quality. Screws that meet ASME B18.2.3.9M or DIN 6921 comply with specifications for dimensional standards. |
| Size: | M6-M20 |
| Material: | Carbon Steel
Class 10.9: 40Cr,42CrMo…… |
| Grade: | Metric Class 10.9 |
| Thread: | UNC, UNF, Coarse threads are the industry standard; choose these Hex Head Screws/Bolts if you don’t know the threads per inch. Fine threads are closely spaced to prevent loosening from vibration. |
| Thread Length: | Partially Thread, Fully Thread |

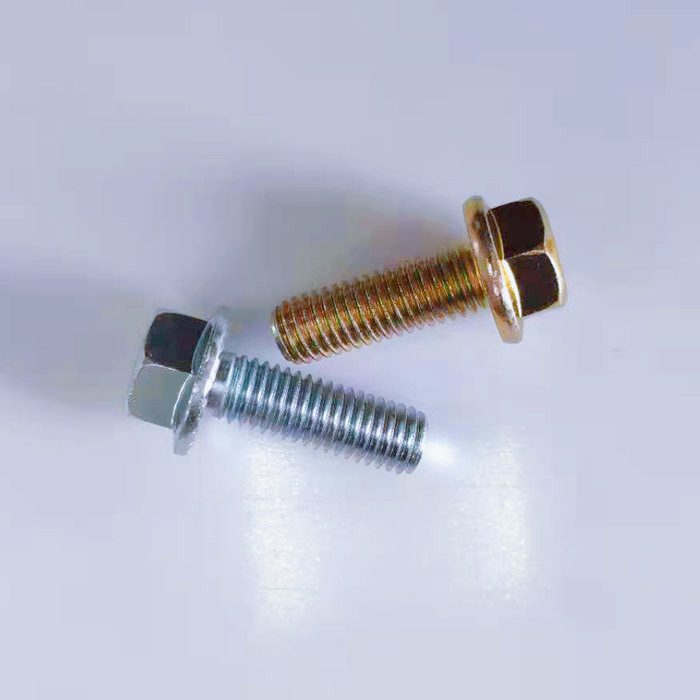

| Finish: | Plain, Zinc Plated (Clear/Blue/Yellow/Black), Black Oxide, Nickel, Hot Dip Galvanized, |
| Zinc-plated steel Hex Head Screws/Bolts resist corrosion in wet environments. Hot-dipped galvanized steel Hex Head Screws/Bolts are 10 times more corrosion resistant than zinc-plated Hex Head Screws/Bolts. They have a thicker coating than other finishes; to ensure compatibility, use these Hex Head Screws/Bolts with hot-dipped galvanized steel nuts. | |

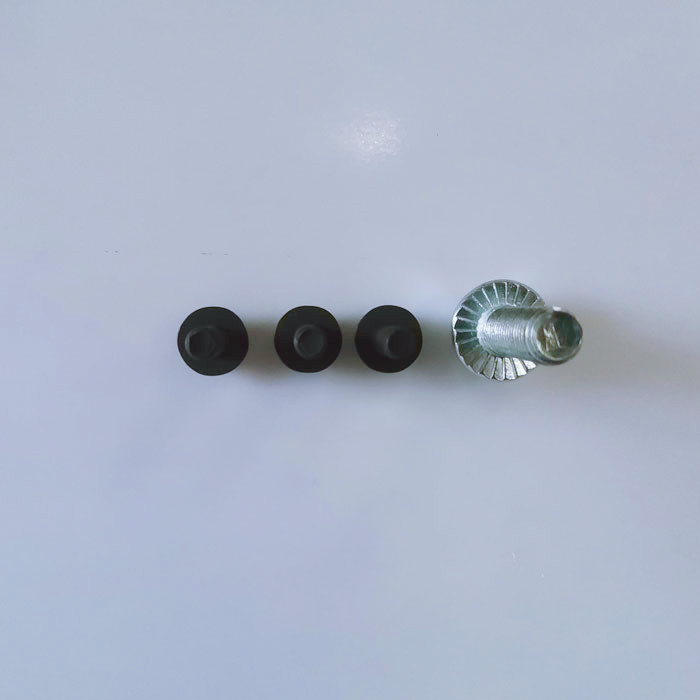

Flanged Hex Head Screws/Bolts Metric Class 10.9 for high-stress applications, such as valves, pumps, motors, and automotive suspension systems. Flanged Hex Head Screws/Bolts Metric Class 10.9 are at least 25% stronger than medium-strength steel screws. Flanged Hex Head Screws/Bolts washer has serrated and non-serrated, so the flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. Head height includes the flange. Length is measured from under the flange.
| Package: | 1. Bulk in 25Kgs Carton Box, + 48 CTN wooden solid Pallet |
| 2. Bulk in 25Kgs Carton Box, + 36 CTN wooden solid Pallet | |
| 3. According to customers demand ( Customized Label & Carton Box ) |
